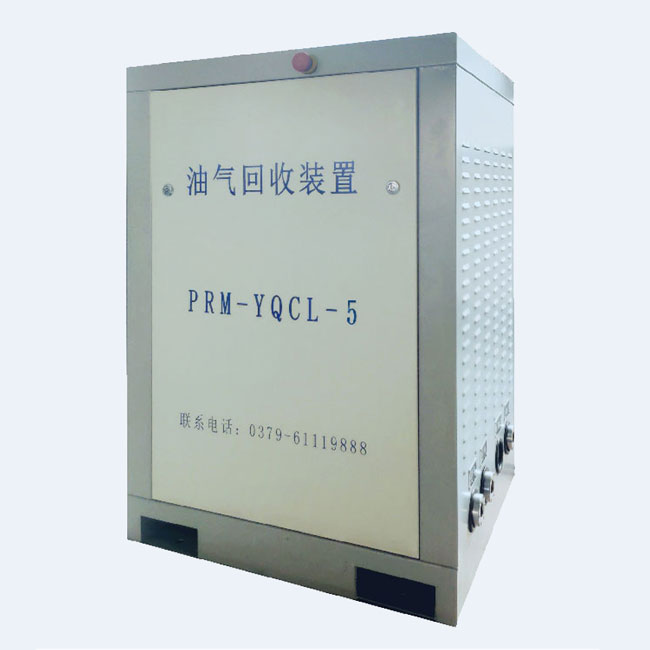

VRU Service Station Petroleum Vapour Recovery Equipment
Product Description
Vapor recovery unit is used to recover the vapor which is discharged by vapor recovery system stage II and underground oil storage tank at petrol station by active carbon absorption technology to achieve the purpose of energy conservation.It also controls the emissions in line with environmental standards to prevent pollution.
Features and Benefits
*Low energy consumption
*Low noise and long service life
*Energy Conservation and environment protection
| Technical Parameters | |
| Model | PRM-YQCL-5 |
| Processing Capacity | 5m³/h |
| Application | Unleaded gasoline and ethanol gasoline |
| Emission concentration | ≤20g/m³ |
| Recovery Rate | ≥98% |
| Staring Pressure | +150Pa（+150-500Pa ） |
| Stopping Pressure | -150-0Pa |
| Energy Consumption | 0.275KW·h/m³ |
| Voltage | AC 380V/50Hz |
| Power | 1.69KW |
| Noise Sound | <55dB |
| Cooling Temperature | -40° C |
| Interface thread | 1 inch |
| Working temperature: | -25℃～+55℃ |
| Ex-proof | ExdeiambⅡA T3 Gb |
| Weight | 260kg |
| Device Dimension | 900*700*1300 |
| Control Box Dimension | 400*300*155 |
| HMI | KINCO |
| Communication Interface | RS485 |
| Extended Function | PLC can connect with online monitor |
| Servcie Life | ≥10 years |
